Effects of pseudoboehmite on catalytic behaviors of hydroisomerization catalyst
Zhang Fang, Wang Yongli, Lü Hongan, He Guanwei*
Xi’an Origin Chemical Technologies Co.,Ltd.,Xi’an 710061,China
Abstract

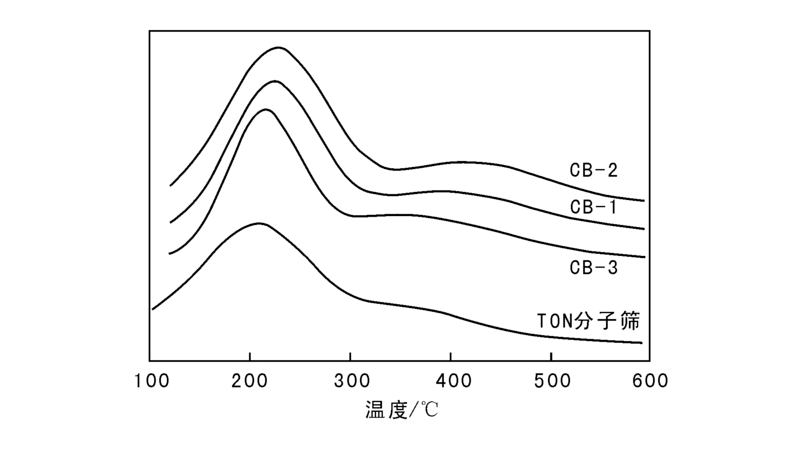

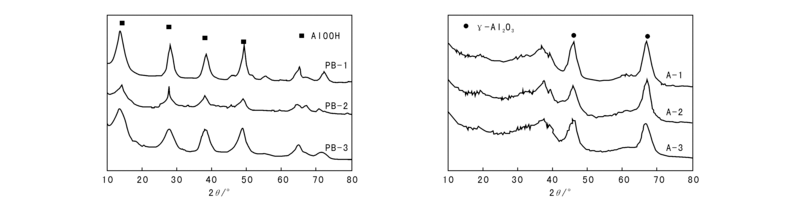

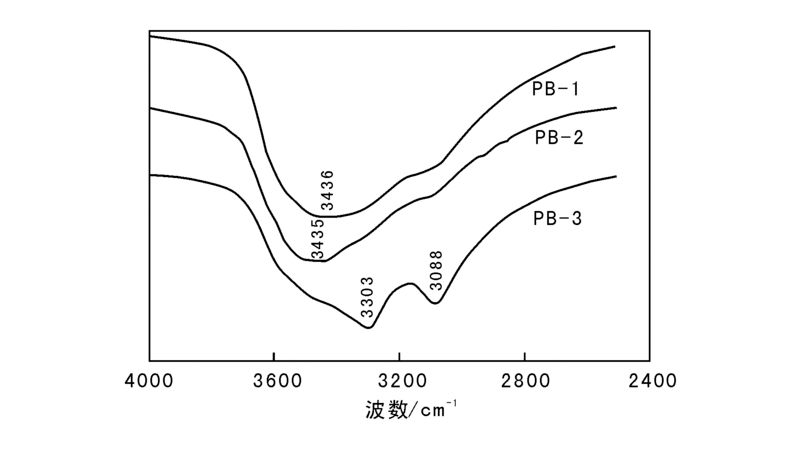

The effects of three types of pseudoboehmite with different pore structure on the physicochemical properties and wax catalytic hydroisomerization behaviors of the isomerization catalyst were investigated in this paper.The physicochemical properties of the pseudoboehmite and corresponding catalysts were characterized by XRD,BET,FT-IR and NH3-TPD.The behaviors of the catalysts were tested in a fixed bed reactor.The results showed that the three types of pseudoboehmite had the same phase.The catalyst prepared from the pseudoboehmite with stronger hydroxyl peak strength and solubility possessed the largest specific surface area and pore volume,the weakest acidity,and the best performance for wax hydroisomerization,producing lubricant base oil with pour point of lower than -30 ℃ and viscosity index of over 180,which met the requirement of high quality lubricant base oil.
