2.Hunan Juli Catalyst Co.,Ltd.,Changsha 410600,Hunan,China
Abstract
The application of JCEG-1DL additive was investigated in a 1.4 Mt·a-1 heavy oil fluid catalytic cracking unit of Petrochina Dalian Petrochemical Company.The results showed that when the JCEG-1DL additive occupied about 10% of the catalyst inventory,in comparison with reference,the content of gasoline increased by 2.74%,the contents of slurry oil and coke reduced by 2.05% and 0.14%,respectively.The JCEG-1DL additive could efficiently improve the product distribution,the yield of gasoline,and the heavy oil conversion capability.Output value increases by 84.1 CNY per ton of material.All indexes reached the requirements of technical agreement and improved the economic benefit of the unit.

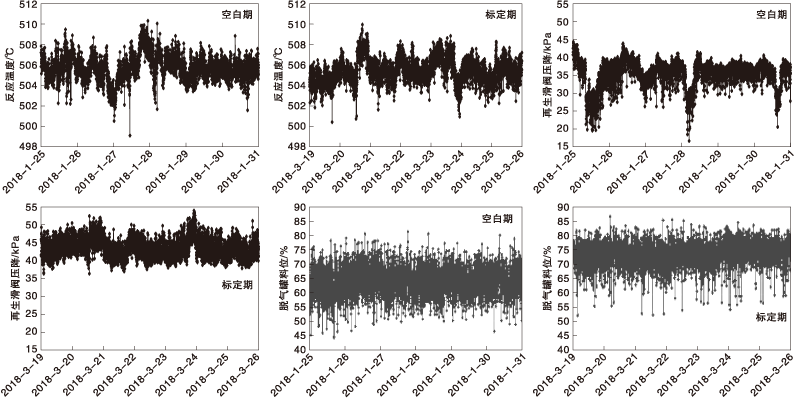

图1 反应温度、再生滑阀压降及脱气罐料位变化趋势Figure 1 Reaction temperature, pressure drawdrop of slide valve of FCC regenerator, and the trend of location of catalysts in degassing tank
郑淑琴, 王智峰, 谭争国, 等. 高岭土原位晶化合成Y型沸石的特性研究[J]. , 2006, 24(2): 104-106. ZhengShuqin, WangZhifeng, TanZhengguo, et al. Study on the characteristics of Y-zeolite synthesized by in-situ crystallization of kaolin[J]. , 2006, 24(2): 104-106. [本文引用:2]
[2]
郑淑琴, 甘杰, 任劭, 等. 以Si-Al凝胶、高岭土水热晶化合成多级孔道催化材料[J]. , 2014, 30(1): 32-37. ZhengShuqin, GanJie, RenShao, et al. Synthesis of multilevel pore catalytic materials by hydrothermal crystallization of Si-Al gel and kaolin[J]. , 2014, 30(1): 32-37. [本文引用:2]
[3]
陈浩, 文飞鹏, 李智, 等. 催化裂化装置原料变化对生产的影响及措施[J]. , 2016, (z1): 75. ChenHao, WenFeipeng, LiZhi, et al. The influence of FCC feedstock change on production and measures[J]. , 2016, (z1): 75. [本文引用:1]
郑淑琴, 甘杰, 任劭, 等. 以Si-Al凝胶、高岭土水热晶化合成多级孔道催化材料[J]. , 2014, 30(1): 32-37. ZhengShuqin, GanJie, RenShao, et al. Synthesis of multilevel pore catalytic materials by hydrothermal crystallization of Si-Al gel and kaolin[J]. , 2014, 30(1): 32-37.
Composite materials containing NaY molecular sieve and matrix in the form of microspheres were synthesized by hydrothermal crystallization method with Si-Al gel as a template, which was added to the Kaolin slurry then spray-dried and calcined. The samples were characterized by X-ray diffraction, N 2 adsorption-desorption. The effects of Si-Al gel amount added to Kaolin slurry on the crystallinity, the silica to alumina ratio and pore size distribution of synthesized catalytic materials were investigated. The results showed that after adding the gel, the pore volume and surface area in the mesoporous range of crystallized product were more substantial rise in referral, the pore size distribution was more narrowed. With added gel mass fraction of 10%, the mesoporous pore volume and surface area of crystallized product reached their largest value, and then declined at 20%. When added gel mass fraction was 10%, the hierarchical catalytic materials were obtained with BET surface area of 480 m 2 /g, total pore volume of 0.41 mL/g, mesopore pore volume of 0.22 mL/g, mesopore surface area of 98.9 m 2 /g, crystallinity of 51.0% and silica to alumina ratio of 5.09.
1. Department of Chemistry and Chemical Engineering, Hunan Institute of Science and Technology, Yueyang 414000, China; 2. College of Chemistry and Chemcal Engineering, Hunan University, Changsha 410083, China; 3. Hunan Juli Catalyst Co. Ltd., Changsha 410600, China
以硅铝凝胶为模板剂,在高岭土制浆过程中加入,经喷雾、焙烧后,在水热条件下晶化合成含有NaY分子筛和基质的多孔复合材料。采用X射线衍射法、N 2 静态吸附法对所合成的样品进行分析表征,考察了硅铝凝胶的加入量对NaY分子筛相对结晶度、 n (SiO 2 )/ n (Al 2 O 3 )以及复合材料孔道分布的影响。结果表明,随着硅铝凝胶加入量的增加,晶化产物在介孔范围内的孔容及比表面积均有较大幅度的提高,介孔分布也更为集中;当加入凝胶质量分数为10%时,介孔的孔容及比表面积达到最大,在20%时有所下降。在凝胶加入量为10%时,可以得到BET比表面积为480 m 2 /g、总孔容为0.41 mL/g、介孔孔容为0.22 mL/g、介孔比表面积为98.9 m 2 /g、结晶度为51.0%、 n (SiO 2 )/ n (Al 2 O 3 )为5.09的含有NaY分子筛和基质的多孔复合材料。
